Basic VFFS machines feature a robust and ergonomic design.
An additional servo drive in the stretching mechanism ensures high precision film stopping.
Packages are perfectly shaped, accurately sized, and feature strong, high-quality seams.
Automatic film position control and adjustment, with the ability to change parameters directly during machine operation.
Possibility of integrating resealable mechanisms (to preserve product properties) and other options
Convenient and quick changeover when changing package size.

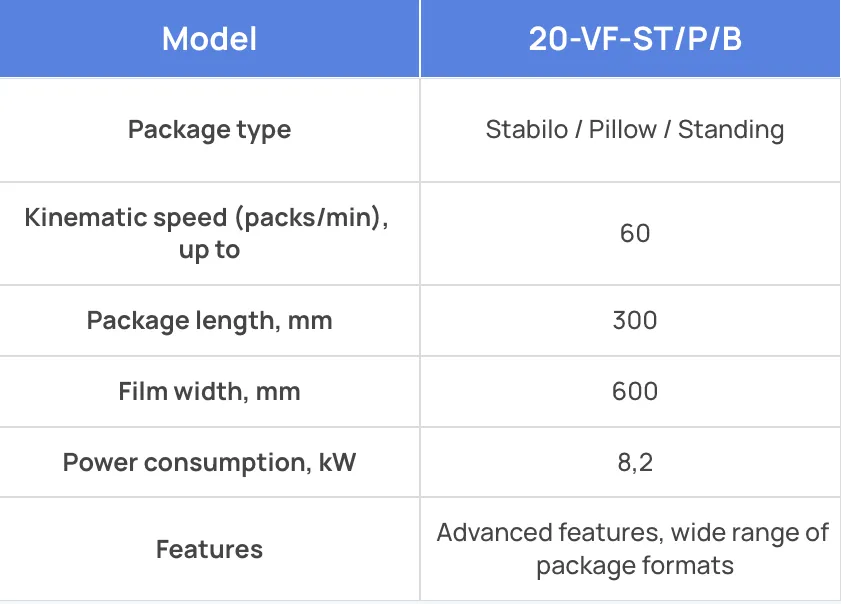

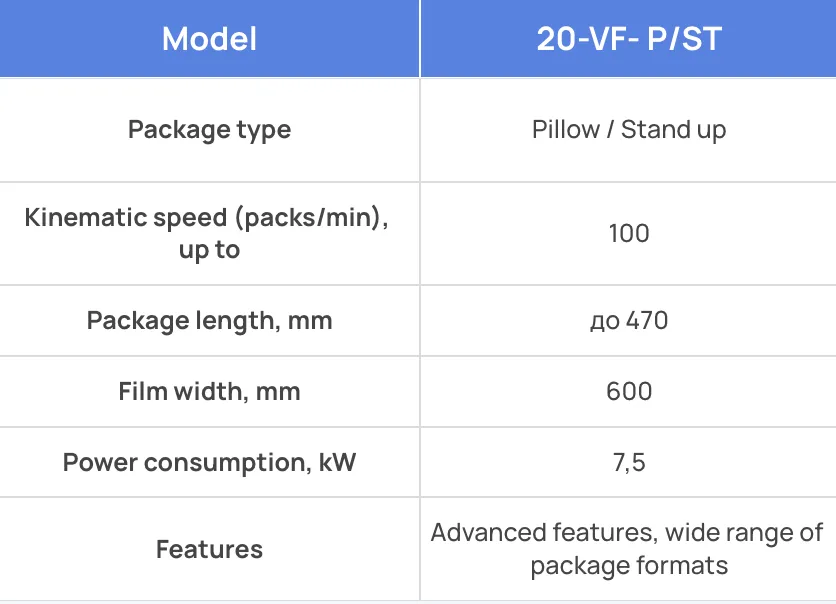

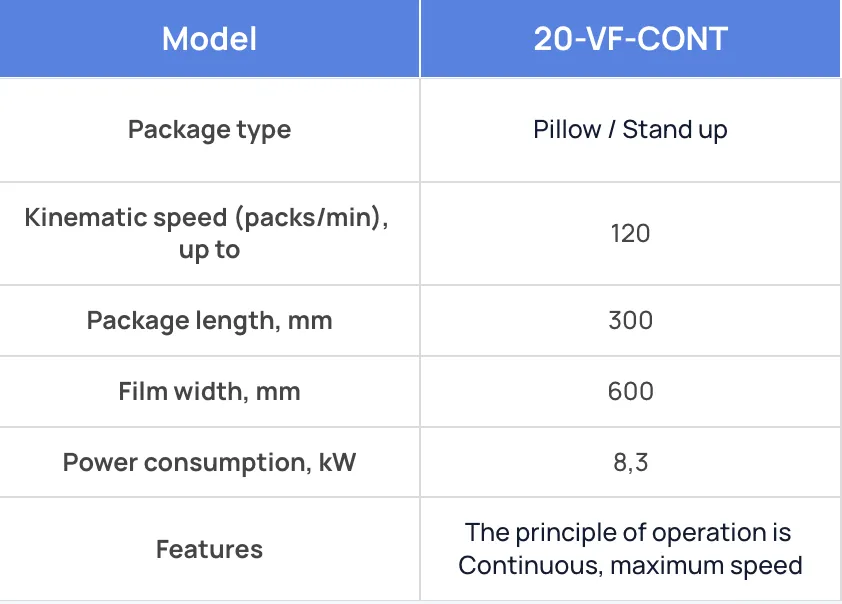

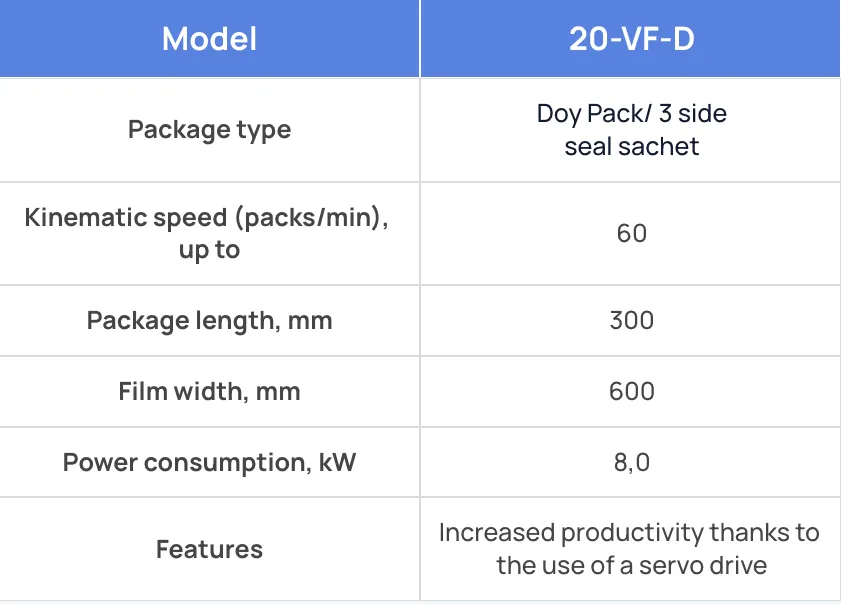

Model
20-VF-CONT
20-VF-D
20-VF-ST/P/B
20-VF- P/ST
Package type
Pillow / Stand up
Doy Pack/ 3 side
seal sachet
Stabilo / Pillow / Standing
Pillow / Stand up
Kinematic speed (packs/min), up to
120
60
60
100
Package length, mm
300
300
300
до 470
Film width, mm
600
600
600
600
Power consumption, kW
8,3
8,0
8,2
7,5
Features
The principle of operation is Continuous, maximum speed
Increased productivity thanks to the use of a servo drive
Advanced features, wide range of package formats
Advanced features, wide range of package formats
