Horizontal cartoner 60-HCI (intermittent)
Solve. Pack. Profit • Solve. Pack. Profit • Solve. Pack. Profit •Solve. Pack.
The Intermittent Cartoner is the ideal solution for step-by-step packaging of products in cardboard boxes.
Thanks to its high precision and flexibility, this type of equipment is particularly suitable for small-scale production and processes where frequent format changes are important. It supports packaging in boxes of various shapes and sizes, ensuring versatility and reliability.
Compact design:
They are often smaller in size than continuous-action cartoners, making them ideal for production facilities with limited space.
Working with the product:
They can handle a wide range of products, including bottles, sachets, blister packs, tubes, and bulk products.
Careful packing of products into a box:
From vertical machines:
from flow-pack packaging;
from an automatic or manual group stacking system;
from the conveyor system.
From vertical machines: Ability to package both single items and groups of items in a display box.
Manual product feeding.
Easy setup and maintenance:
Easy conversion from one format to another thanks to the modular design of the interchangeable parts.
Improved intuitive user interface:
visualization of the readiness status of equipment units at startup;
flexible control of connected equipment from the cartoner screen;
Easy recipe setup and management.
APPLICATION:
Food and beverages
Pharmaceuticals and medicine
Cosmetic products
Other areas

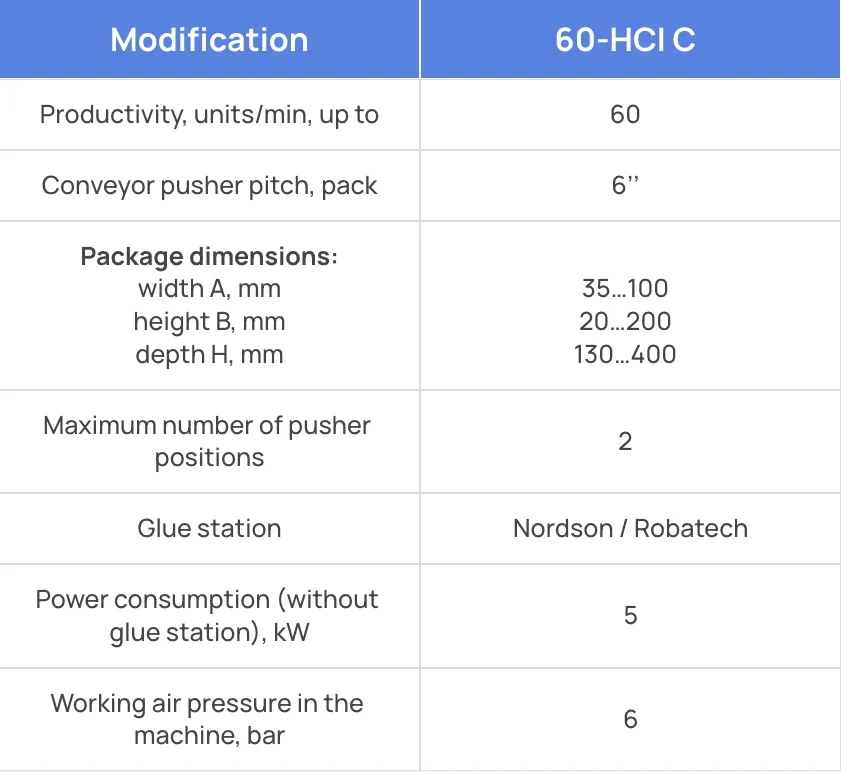

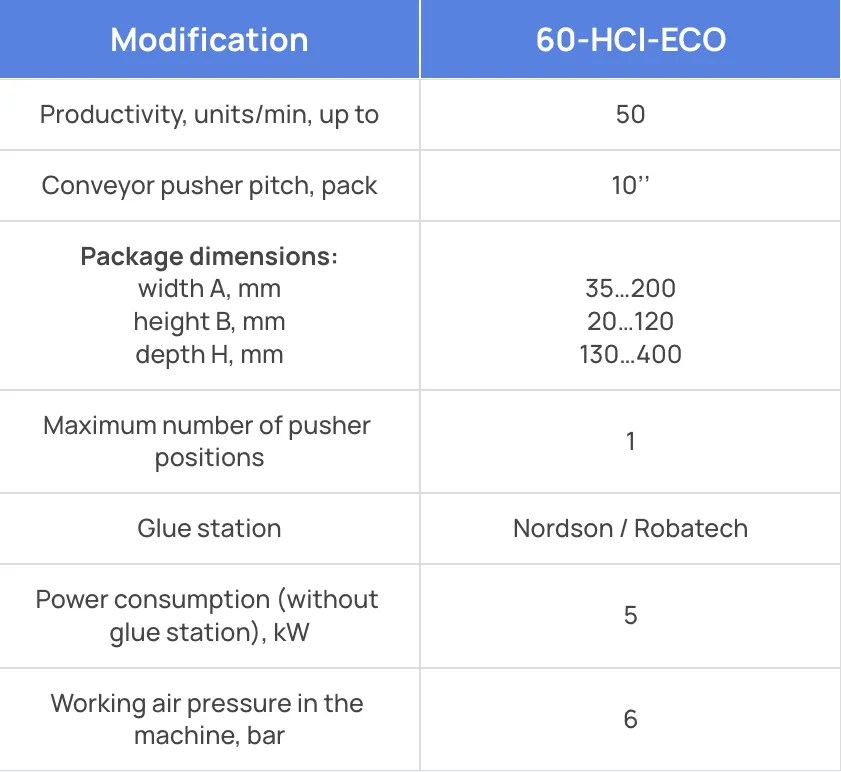

Modification
60-HCI-ECO
60-HCI A
60-HCI B
60-HCI C
Productivity, units/min, up to
50
40
55
60
Conveyor pusher pitch, pack
10’’
12’’
10’’
6’’
Package dimensions:
width A, mm
height B, mm
depth H, mm
35…200
20…120
130…400
35…250
20…200
130…400
35…200
20…200
130…400
35…100
20…200
130…400
Maximum number of pusher positions
1
1
1
2
Glue station
Nordson / Robatech
Power consumption (without glue station), kW
5
Working air pressure in the machine, bar
6
TECHNOLOGICAL PROCESS DIAGRAM:
BOXES OF VARIOUS SHAPES:
