Top loader 70-TL
Solve. Pack. Profit • Solve. Pack. Profit • Solve. Pack. Profit •Solve. Pack. Profit •
A top-loading cartoner is a packaging machine designed to load products into open-top cardboard boxes. These machines are ideal for packaging fragile, non-standard shaped, or products that require precise placement.
Top loading mechanism
Products are loaded into cardboard boxes or trays from above — manually or automatically.
Flexibility
Suitable for working with various sizes of cardboard packaging and types of products, including bags, bottles, cans, and bulk goods.
Modularity
Can be integrated with other systems, such as conveyors and sealing devices
Customization options
Supports various product feeding systems (robotic manipulators, gravity feeding, pick-and-place systems) adapted to product characteristics.
APPLICATION:
Food and beverages
Pharmaceuticals and medicine
Cosmetic products
Other areas

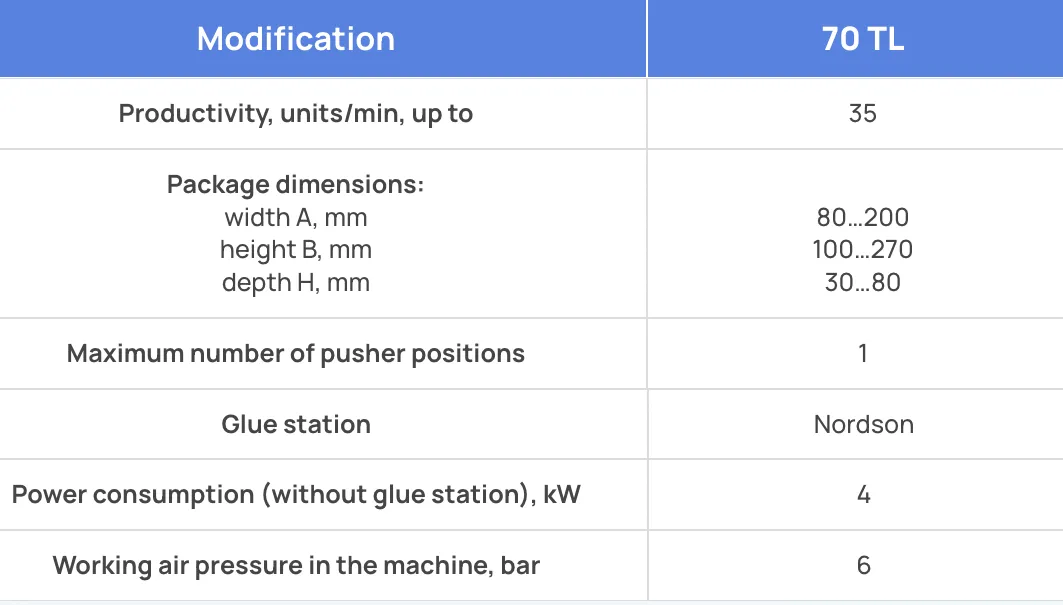

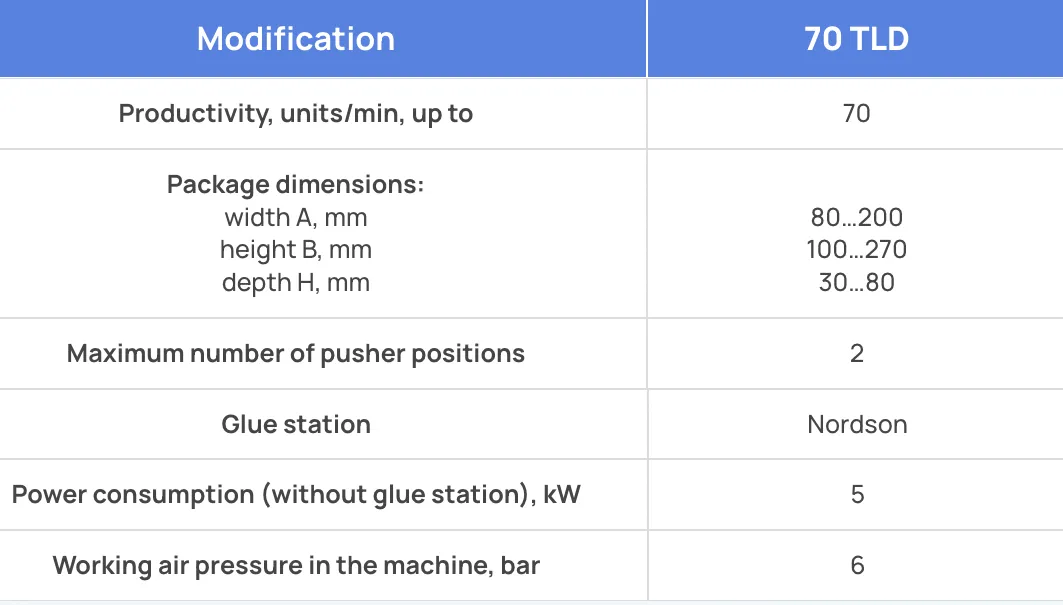

Modification
70 TL
70 TLD
Productivity, units/min, up to
35
70
Package dimensions:
width A, mm
height B, mm
depth H, mm
80…200
100…270
30…80
80…200
100…270
30…80
Maximum number of pusher positions
1
2
Glue station
Nordson
Nordson
Power consumption (without glue station), kW
4
5
Working air pressure in the machine, bar
6
6
TECHNOLOGICAL PROCESS DIAGRAM:
